Name: Utility Vehicle Atv 500cc Atv 25L Big Oil Tank EFI Starting Model
Brand: Shanghai Rongyao Vehicle Co.,Ltd
SKU: kendaraan utilitas atv50009
Availability: InStock

Rumah > Produk > Kendaraan Utilitas ATV >

Utility Vehicle Atv 500cc Atv 25L Big Oil Tank EFI Starting Model

Tempat asal:

Cina

Nama merek:

RONGYAO

Sertifikasi:

EC,EEC,DOT,EPA

Nomor model:

kendaraan utilitas atv50009

Hubungi Kami

Minta Kutipan

Utility Vehicle Atv 500cc Atv 25L Big Oil Tank EFI Starting Model

Rincian produk

Nama Produk:

Kendaraan utilitas 500cc atv

Penularan:

CVT

Menghasilkan dimensi:

2386×1125×1217mm

Suspensi, depan/belakang:

Suspensi independen lengan ayun ganda

Jenis permulaan:

Mulai Listrik

Kompresi:

10.3:1

Syarat Pembayaran & Pengiriman

Kuantitas min Order

Harga

negotiable

Kemasan rincian

Bingkai Logam dengan Karton

Waktu pengiriman

Dalam 20 Hari

Syarat-syarat pembayaran

T/T, Serikat Barat,

Menyediakan kemampuan

1000 buah/bulan

Produk terkait

Grosir 500cc Adult Racing ATV 4*2 Otomatis Transmisi Dingin Air Four-Wheel Drive Besar Off-Road UTV Bagian & Aksesoris

Dapatkan Harga Terbaik

Bashan 300cc ATV Quad Bike 4WD Berpendingin Oli dengan Rem Cakram Hidraulik

Dapatkan Harga Terbaik

Mud ATV 600cc 650cc 2 kursi off-road 4 roda Four Wheeler Buggy

Dapatkan Harga Terbaik

Berkualitas tinggi 400cc 4X4 Quad Bike Road Legal ATV Otomatis Shaft Drive Dilengkapi kunci diferensial Electric Start Atvs dengan Harga Grosir

Dapatkan Harga Terbaik

Hubungi Kami

0086-13761175834

sales@fourwheel-atv.com

Hubungi Sekarang

Deskripsi Produk

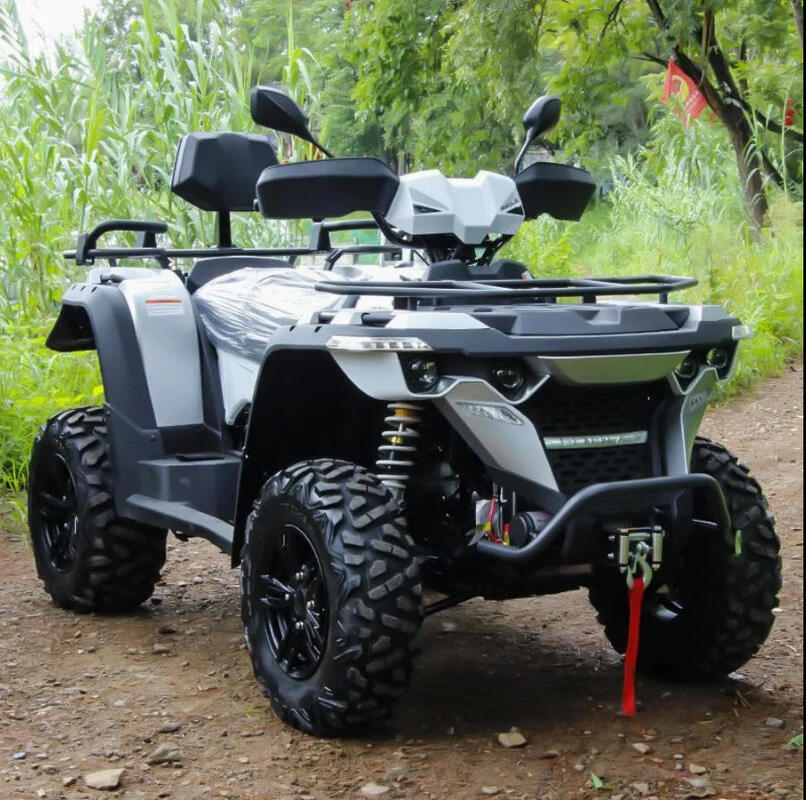

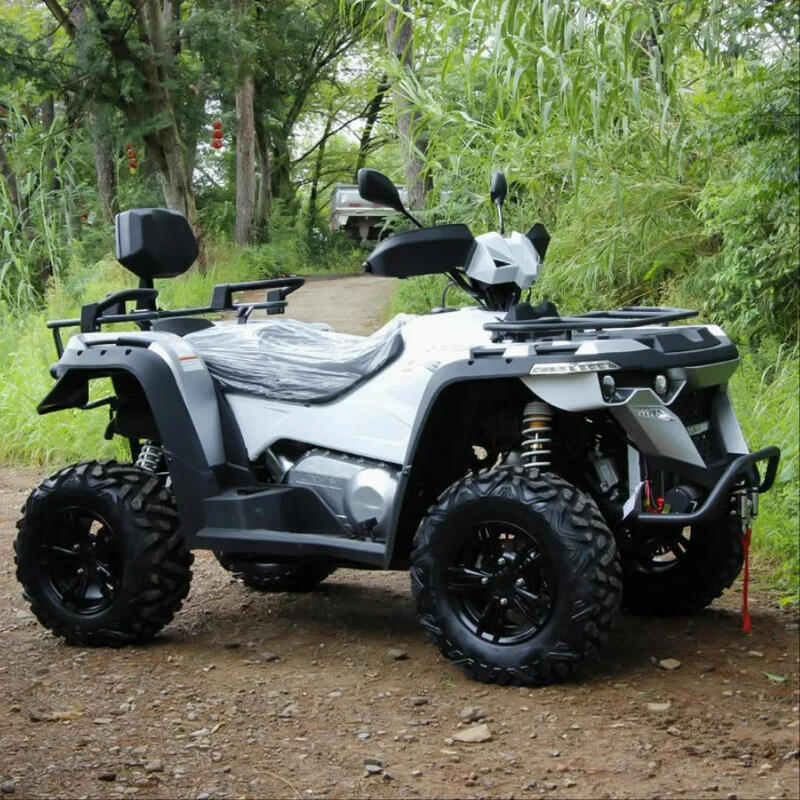

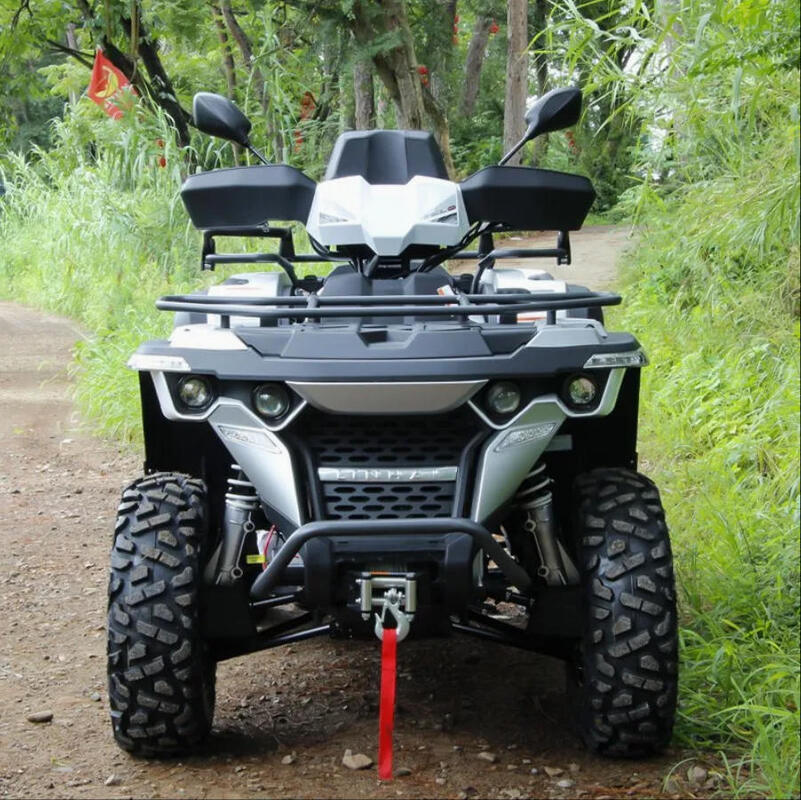

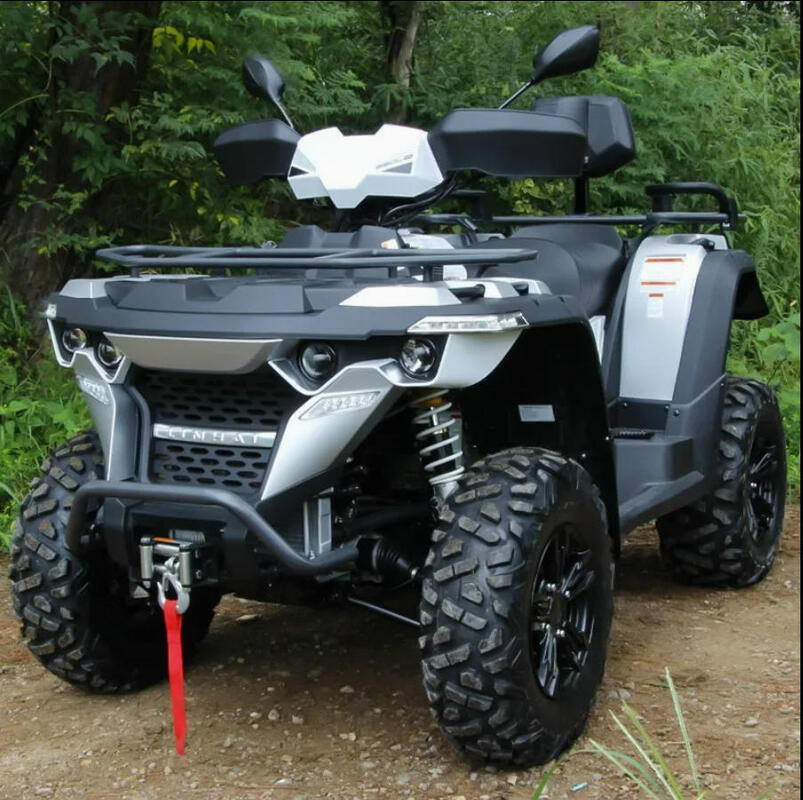

Utility Vehicle Atv 500cc Atv 25L Big Oil Tank EFI Starting Model

Model:

utility vehicle atv50009

Product Description:

Dimensions: L× W × H:2386×1125×1217mm
Packaging size:2300*1200*1200mm
Wheelbase:1460mm
Ground clearance:262mm
Fuel tank capacity:25L
N.W // G.W:About 365kg //About 456kg
Tyre:Front:24×8.00-12 Rear:24x10.00-10
Braking:Disc Brake
Suspension:Front/Rear: Double rocker arm independent suspension
Shock absorption:Front/back: Helical spring + oil damping type
Engine type:Single-cylinder,water-cooled,four-stroke,500cc
Startup mode:EFI
Startup type:Electric start
Bore × stroke:91×76.5mm
Maximum power/Corresponding rotational speed:34kw/6750rpm
Maximum torque/corresponding rotational speed:39N.m/5759rpm
Compressionration:10.3:1
Optional Colors:Black,White

Applications:

1. adult

2. Forest road

3. Riverbed, Stream

4. Mountain Road

5. Beach

6. Farm

7. Pleasure Ground

Terms of transaction:

Our warranty is 1 years. If your vehicle is broken,the spare parts will be sent to you free of charge. This vehicle will be sent to you assembled by sea and you can ride as soon as getting it. The terms of payment is wire transfer,western union or . The delivery time is about 20 days.

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Company Information;

1. All of the ATV Frame is use the 2.5mm seamless steel pipe ligt arc welding,production by our factory workeshop.reliable and stability.

2. All of the ATV engine is come from original engine factory. have not the renovation engine.

3.Each one ATV come out from factory, All must go through rigorous drive testing.To ensure the quality of each ATV.

4.We have one Professional team to do the after-sales service, Provide the solution to solve your worries on the ATV problems.

Warranty time
We supply you 12 months for warranty time, during the warranty time, we supply you free parts!!
